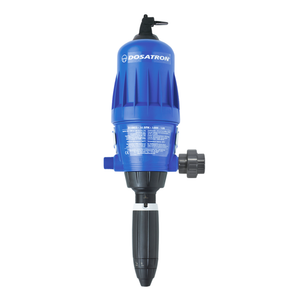

Dosatron 3/4 in Doser 7.5 to 75 ml/gal

Simplify your fertilization regimen by installing Dosatron Water Powered dosing systems directly into your water supply line, allowing for in-line feeding or reservoir tank filling. Dosatron dosers operate using water pressure as their power source (no electricity required), which activates the doser, drawing the required percentage of concentrate and mixing it with water inside the unit. Water pressure then propels the solution downstream, allowing you to daisy-chain dosers to integrate all your nutrients and supplements into a complete and simplified feeding system. All D-14 Series dosers include a mounting bracket, suction hose, bypass, union, weighted filter, and a quick start guide.

Operating pressure range is 4.3 to 85 PSI and water flow range is 0.05 to 14 GPM (0.19 to LPM)

https://www.dosatronusa.com

Technical Specifications

• Connection: 3/4 in | Dosing Range: 7.5–75 ml/gal | Brand: Dosatron | Type: Water-Powered Nutrient Doser
• Adjustable injection rate from 7.5 to 75 ml per gallon of water flow
• Water pressure powers the piston — no electricity or external pumps required
• Compatible with 3/4 in water supply lines — designed for high-volume nutrient delivery
• Used in commercial greenhouses and large indoor growing operations for precise nutrient dosing

How to Use

• Install in-line on your water supply according to the Dosatron installation manual
• Set the injection dial to the desired dose within the 7.5–75 ml/gal range
• Prime by running water until a consistent nutrient solution flows from the outlet
• Flush the unit with clean water when changing nutrient concentrates
• Replace the seal kit annually or when dosing becomes inconsistent
