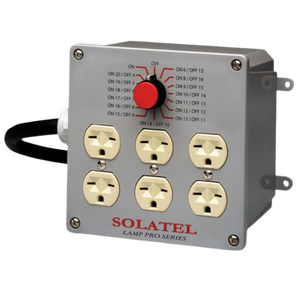

Timer, Solatel Lamp Pro, 6 Outlets, 240V 30A

The Solatel Lamp Pro series of timers includes 120V and 240V models with corresponding outlets. They are easy to use thanks to a single Select knob that clicks into any of 16 time settings. Settings include an accelerated 18-hour day cycle that runs 6 hours ON / 12 hours OFF. Thirteen normal 24-hour day settings cover from 8 ON / 16 OFF to 20 ON / 4 OFF in one-hour increments, for growing both short-day and long-day plants. Continuous ON and OFF settings are also included.

Technical Specifications

• 240 V, 30 A lighting timer with six outlets
• Controls up to six 1000 W lamps
• Single Select knob that clicks into any of 16 time settings
• Includes accelerated 18-hour cycle (6 on / 12 off), thirteen 24-hour cycles from 8/16 to 20/4 in one-hour increments, and continuous on and off settings
• Sequential power-up: activates outlets two at a time with 20 seconds difference, and 5 seconds delay when turning off
• 8-foot power cord with bare wires, for hardwiring

How to Use

• The 240 V connection must be made by a qualified electrician: the cord comes with bare wires and connects to the circuit according to local electrical code.
• Confirm that the circuit supports the total load of your lamps and that 30 A are not exceeded.
• Connect each ballast to a timer outlet; do not daisy-chain power strips or exceed capacity.
• Turn the Select knob to the photoperiod you need; staggered power-up activates automatically.
• Install on a wall, in a dry and ventilated place, away from irrigation and water splashes.
• Cut off power before maintenance and clean dust from the cabinet with a dry cloth.
