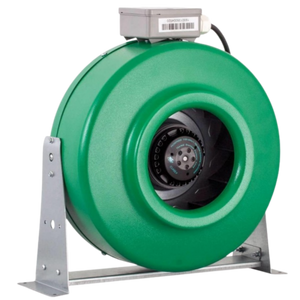

Active Air 8 in Inline Duct Fan, 720 cfm

The Active Air 8 in Inline Duct Fan is a 720 cfm 8-inch inline extractor fan, designed to move air in medium and large indoor grow rooms. With this airflow, it refreshes the air in large spaces, removes heat and humidity, and directs odors to the carbon filter. Its metal casing and long-life motor make it suitable for continuous operation.

Benefits

• 720 cfm airflow with 8" connection, for large rooms or multiple tents in line.
• Brushless AC motor with thermal protection and sealed bearings for life; average lifespan of 20,000 hours.
• Metal casing with ceramic coating and high-quality molded impeller.
• 2520 RPM, 198 W at 120 V and 60 Hz, with a maximum of 75 dB.
• Integrated flanges, mounting brackets, and 8-foot pre-wired cord for 120 V.

How to use

Mount the inline fan with the duct following the airflow direction arrow. Hang it with straps or secure it with the included brackets to reduce vibration and noise. Connect an 8" carbon filter at the inlet if you need odor control and use clamps at each duct joint.

Available at Pachamama Indoor Farming Culture with shipping throughout Costa Rica.

Technical specifications

• Airflow: 720 cfm
• Duct diameter: 8 inches, with integrated flanges
• Electrical: 120 V, 60 Hz, 198 W, 1.72 A
• Speed and noise: 2520 RPM, maximum 75 dB
• Motor: Brushless AC, average lifespan of 20,000 hours
• Includes mounting brackets and 8-foot pre-wired cord

How to use

• Mount the inline fan with the duct following the airflow direction arrow
• Hang it with straps or secure it with the brackets to reduce vibration and noise
• Connect an 8-inch carbon filter at the inlet if you need odor control
• Secure each duct joint with a clamp and aluminum tape
• Clean dust from the impeller and casing; bearings do not require lubrication
• Store in a dry place when not in use
